Biomass Gel Pads

Sustainable protection for your home,
offices, stores, labs
Environmentally friendly without
compromising performance.

Minimize downtime and disruption in the event of emergencies with our BCP solutions, keeping your offices, research institutes, and factories operating smoothly.

Passes 1000Gal earthquake resistance test. Safeguarding your loved ones from the dangers of earthquakes and unexpected accidents. Ideal for use in homes, schools, and other facilities to prevent injuries and property damage caused by earthquakes

Mount the pad on the inside of the edge of the fixture.

•Usable temperature range: -20….75℃・-4F….167℉ Note)the suitable temperature range for TVs may differ from this product. Please refer to the manufacturer’s instructions.

•Service life: Standard pad: 5…7 years, Biomass pad: 8…10 years

•Apply pressure evenly to the entire mat during installation.

•Do not use the pad on objects with uneven bottoms.

•The pad can be easily cut with scissors. Please use scissors with a fluorine coating.

•Insufficient installation area can reduce the pad’s adhesive strength. (e.g. Gridded base, Ensure the entire surface of the pad adheres to the object.)

•Avoid using on weakly painted surfaces, cracked or damaged surfaces, or uneven or irregular surfaces.

FEATURES

Bio-based materials for a sustainable future.

Eco-friendly product that reduces CO2 emissions and environmental impact.
Free from formaldehyde, lead, and other harmful substances.
Conforms to RoHS 2 (2011/65/EU)

Our innovative gel adapts to all types of vibrations.

Gel with superior vibration damping capability due to its unique solid-liquid properties, ultra-high adhesion, and ultra-low resilience.

Ideal for BCP (Business Continuity Plan) measures in offices, laboratories, factories, and more!

Recommended for anti-tipping measures in a wide range of situations where computers, furniture, cabinets, lockers, and precision equipment are installed.

Compared to the standard model

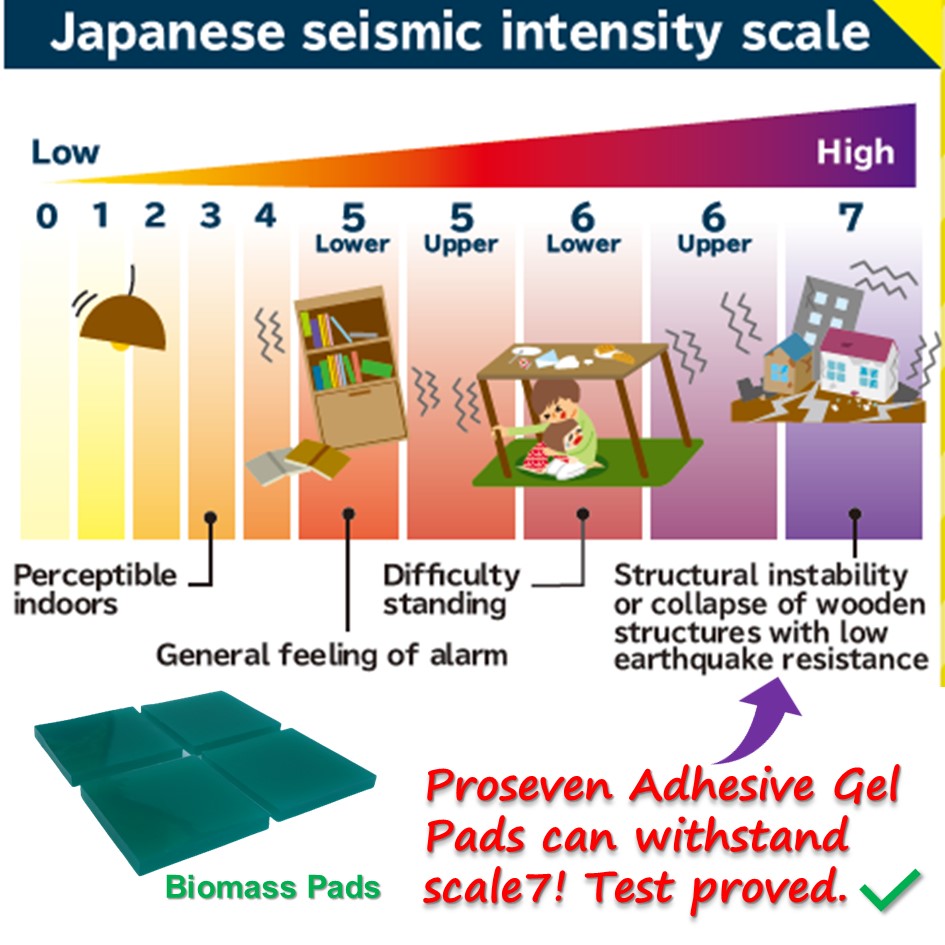

Withstand JMA Seismic Intensity 7 (equivalent to 1000Gal). Seismic load capacity has been significantly increased by 1.4 times, and the service life has been extended to 8-10 years..

"Japan Association for Disaster Prevention and Safety“ recommended Products

Our products, including this Biomass gel pad have been certified by the "Japan Association for Disaster Prevention and Safety“ as a valuable tool for disaster preparedness, contributing to safety, functionality, and convenience.

Reusable Design

Simply rinse with water and let it dry to restore its adhesive power and reuse it multiple times.



Example of use

PC・TV・Locker・Cabinet, etc.

Testing Equipment

analysis instrument

Incubator

Kitchen cabinet & kitchen appliances

Small appliances

Heavy machinery

Biomass Gel Pads
LINEUP

Seismic load capacity:50㎏/110lb (when using 4 pcs)

B-N30G (a set of four)

Size:30×30×5mm

Compatible with TVs up to 32 inches, air purifiers, computers, small appliances, etc.


Seismic load capacity:90㎏/198lb (when using 4 pcs)

B-N40G (a set of four)

Size:40×40×5mm

Compatible with TVs up to 60 inches, PC, furniture, etc.

Seismic load capacity:140㎏/308lb (when using 4 pcs)

B-N50G(a set of four)

Size:50×50×5mm

Compatible with TVs up to 84 inches, furniture, bookshelves cabinet, etc.

Seismic load capacity:140㎏/308lb (when using a whole sheet)

B-N1001G(a single sheet)

Size:100×100×5mm

Can be cut freely with scissors to suit your needs.
Compatible with TVs up to 84 inches, furniture, bookshelves cabinet, etc.

Cutting guideline: 1.4 kg of weight per cm²
