Metal Fittings against Seismic Shock
Earthquake-Ready Security,
Office-Approved Stability!

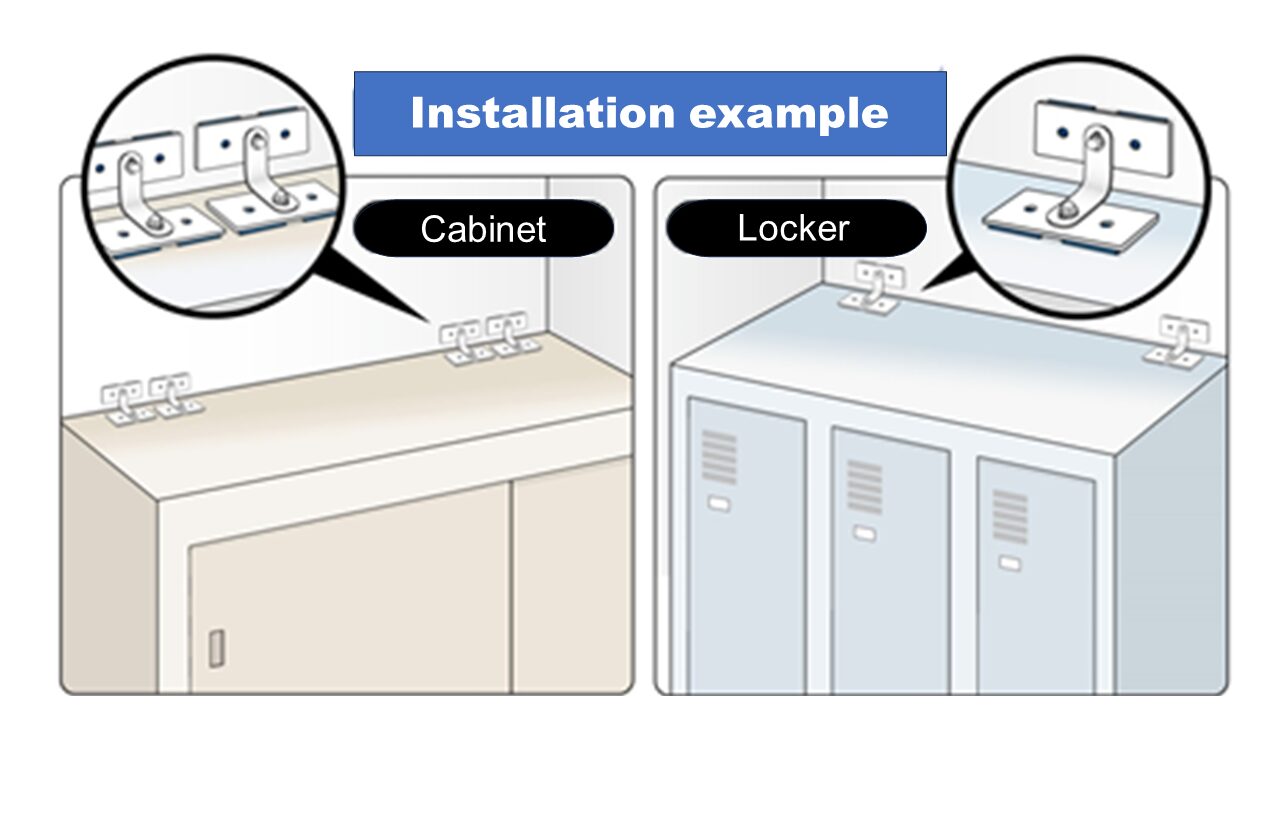

◆Installation Guide

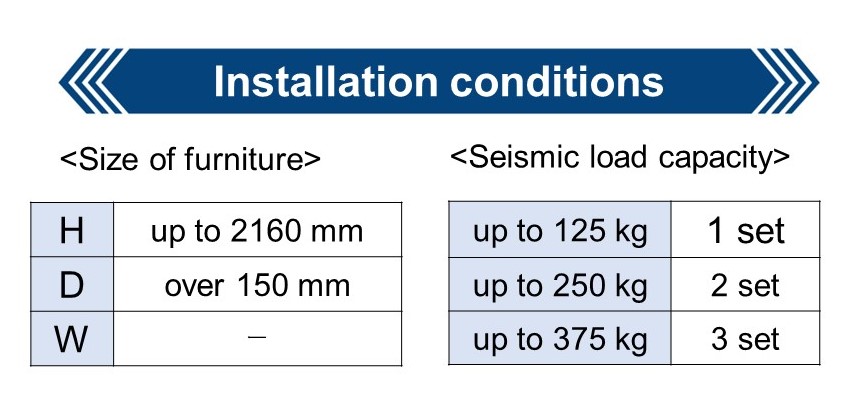

•Accommodates objects up to 216 cm (85 inches) in height and a minimum depth of 15 cm (6 inches).
•Seismic load-bearing capacity:
up to 125kg/275lb : 1 set (2 pcs)
up to 250kg/550lb : 2 sets (4 pcs)
up to 375kg/826lb : 3 sets (6 pcs)

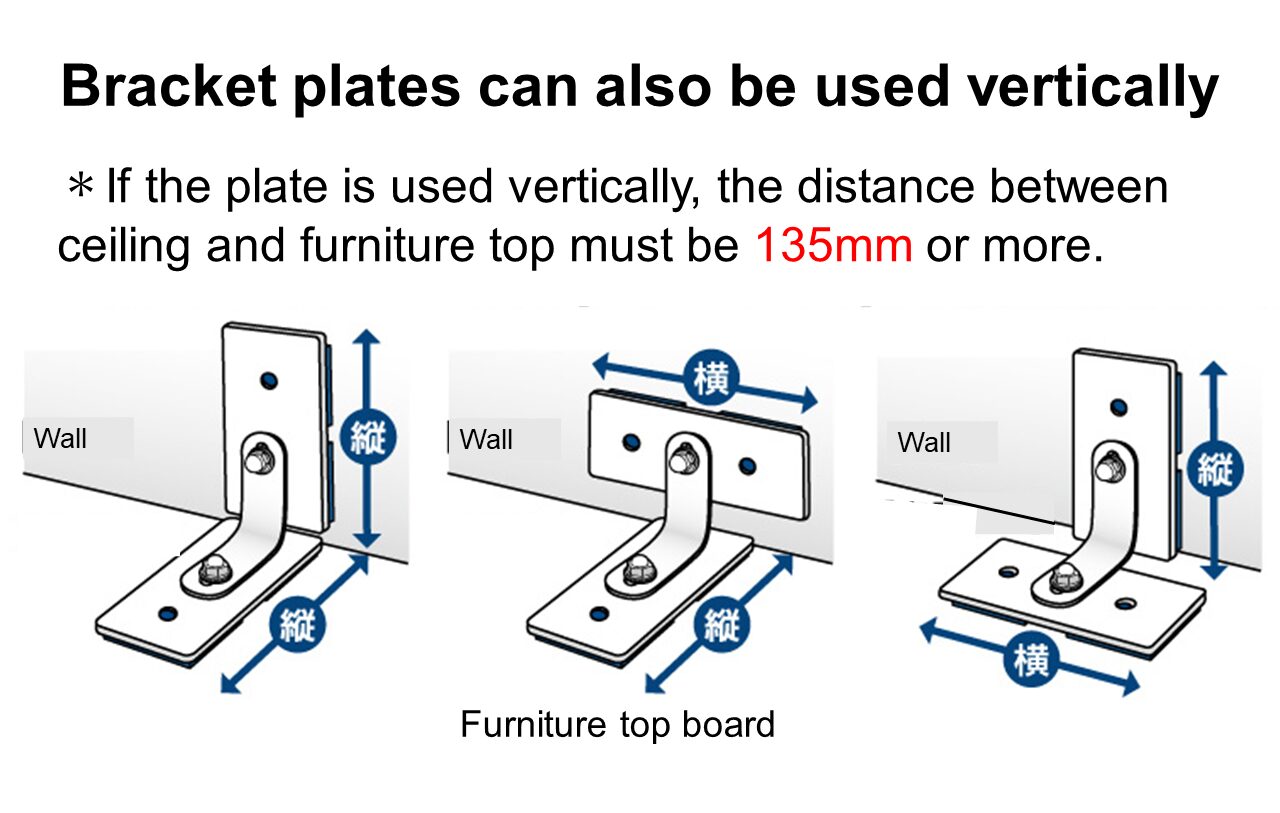

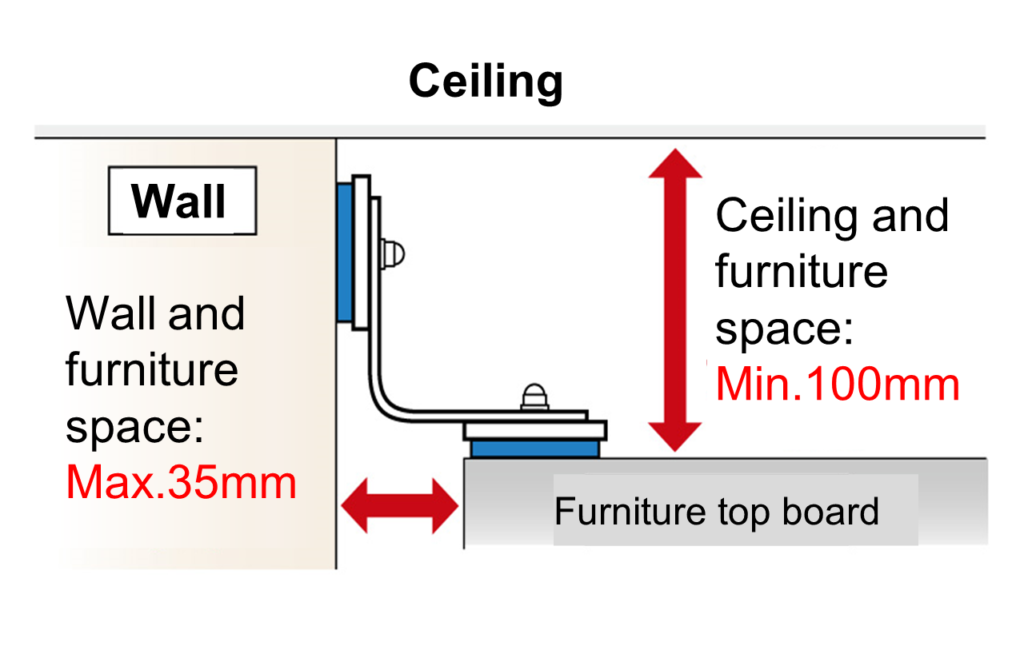

•There must be at least 10 cm (4 inches) of space between the top of the object to be mounted and the ceiling. *Note that a minimum clearance of 13.5 cm (5.3 inches) is required if the mounting plate is used vertically.
•The gap between the object to be mounted and the wall should be between 0 cm and 3.5 cm (0 inches and 1.38 inches).

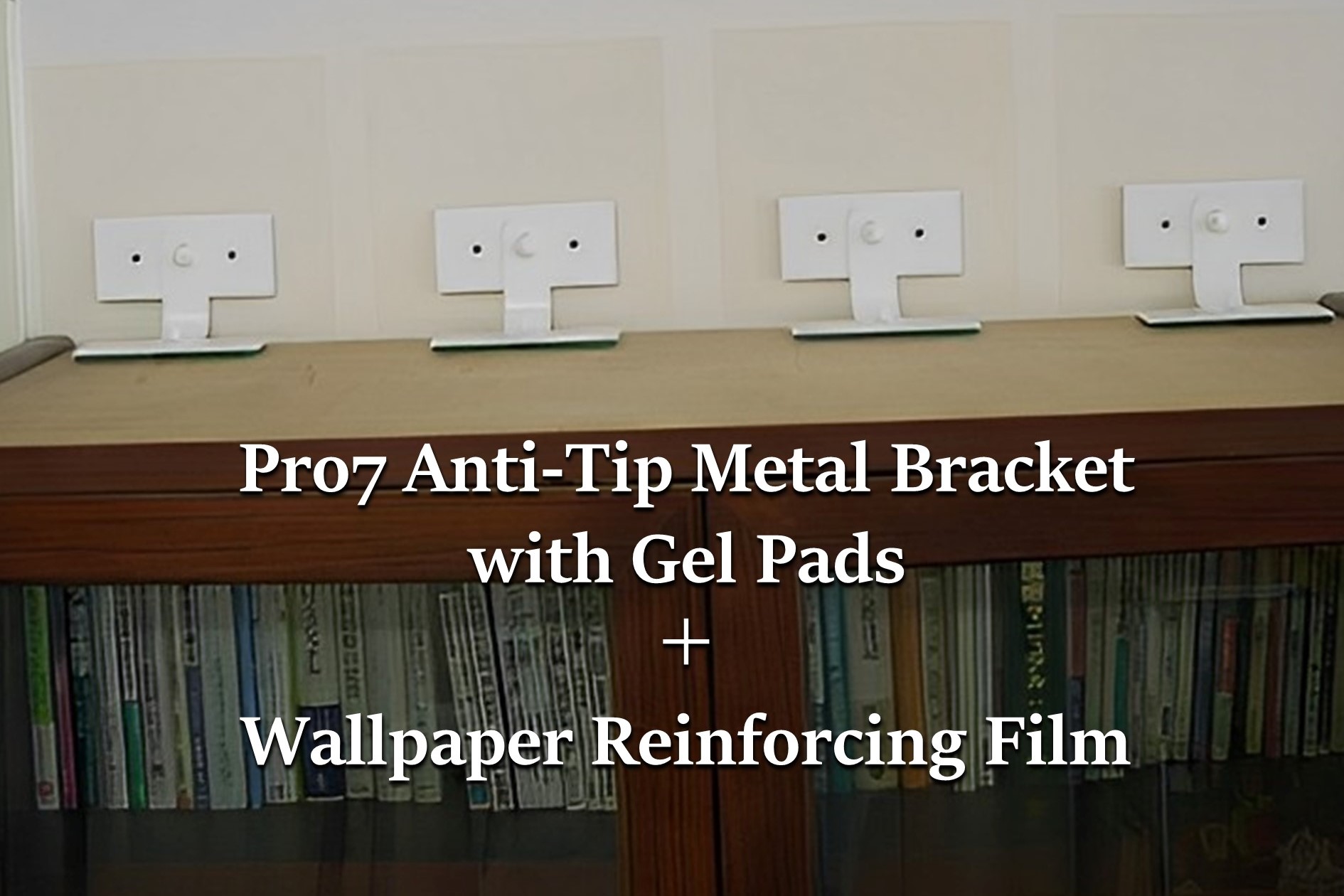

Wallpaper Reinforcing Film for Anti-Tip Metal Bracket
Weight: 125kg / 275lb

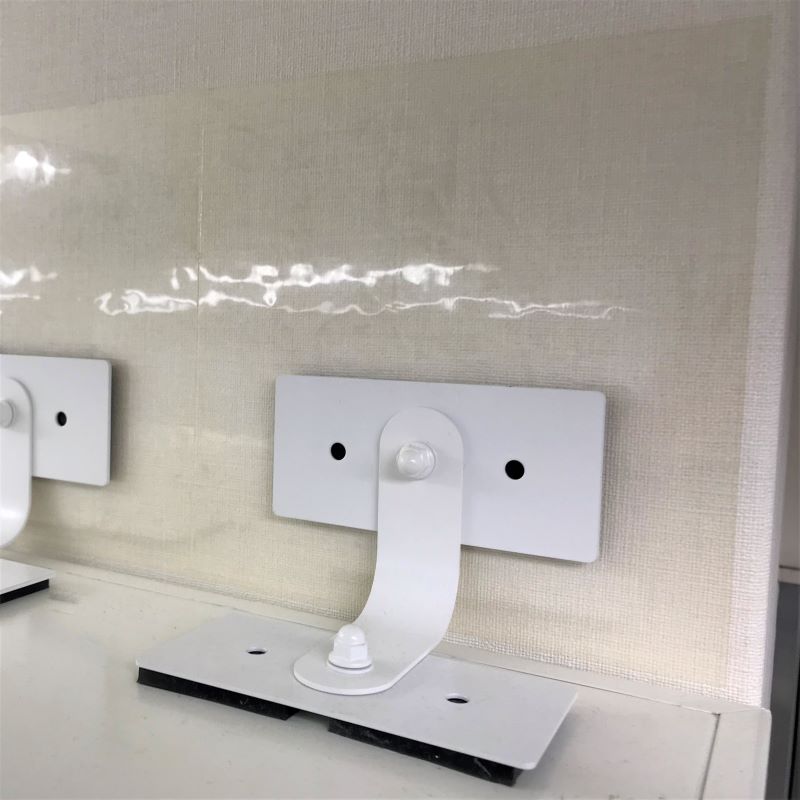

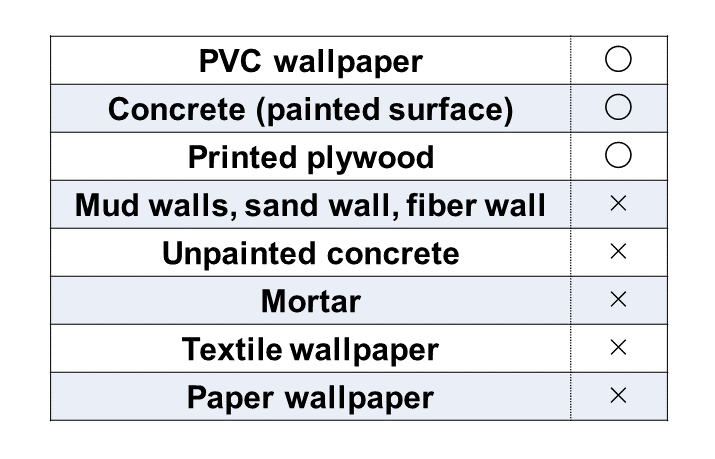

Drywall with vinyl wallpaper

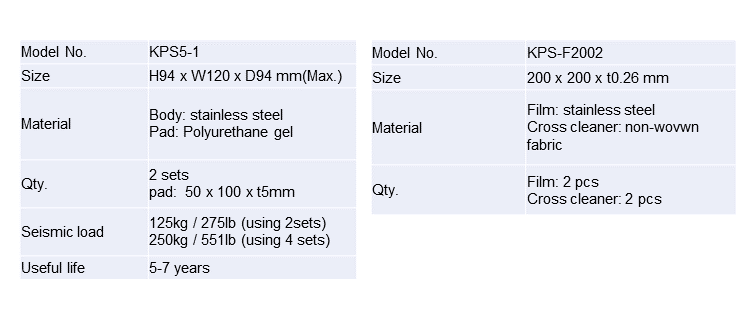

◆Specifications
No-Drill, No-Tool Earthquake Protection: Keep your home, offices and stores safe without the hassle.
By simply attaching pads to the wall and the tabletop, you can secure it without the need to drill holes in the wall or furniture.
Experience the ultimate flexibility in placement with our omni-directional plate adjustment feature, allowing you to customize the installation to match any requirement.

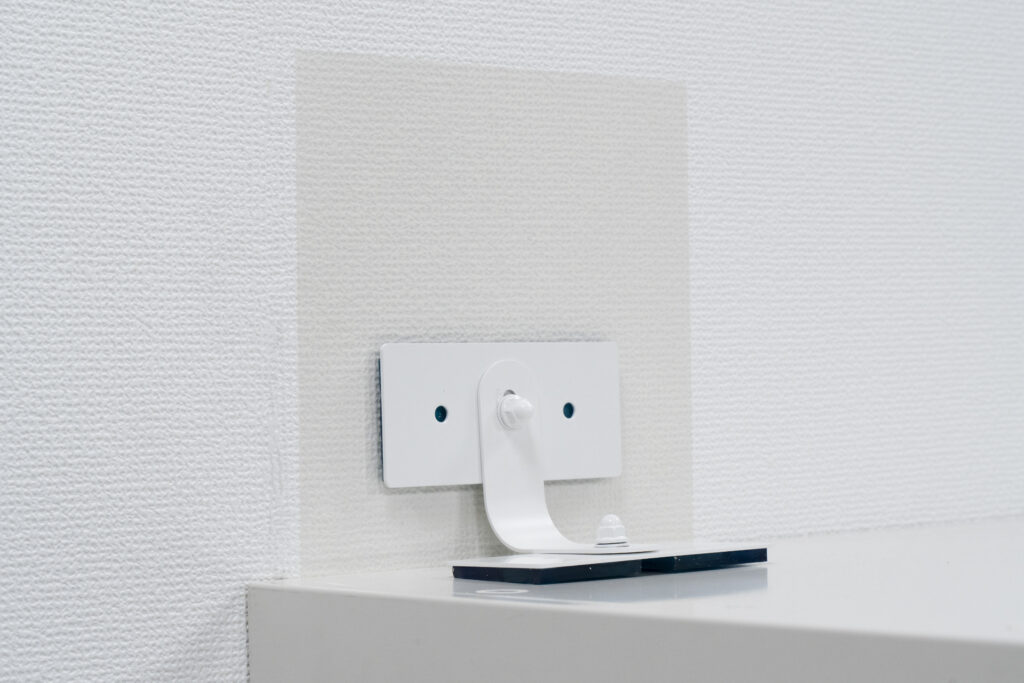

Fortify your earthquake preparedness with our easy-to-apply wallpaper reinforcement film, providing an extra layer of protection against seismic events.
Special Film Shields Against Tears and Strengthens Walls for Seismic Resilience
＊The wallpaper reinforcement film cannot be removed.

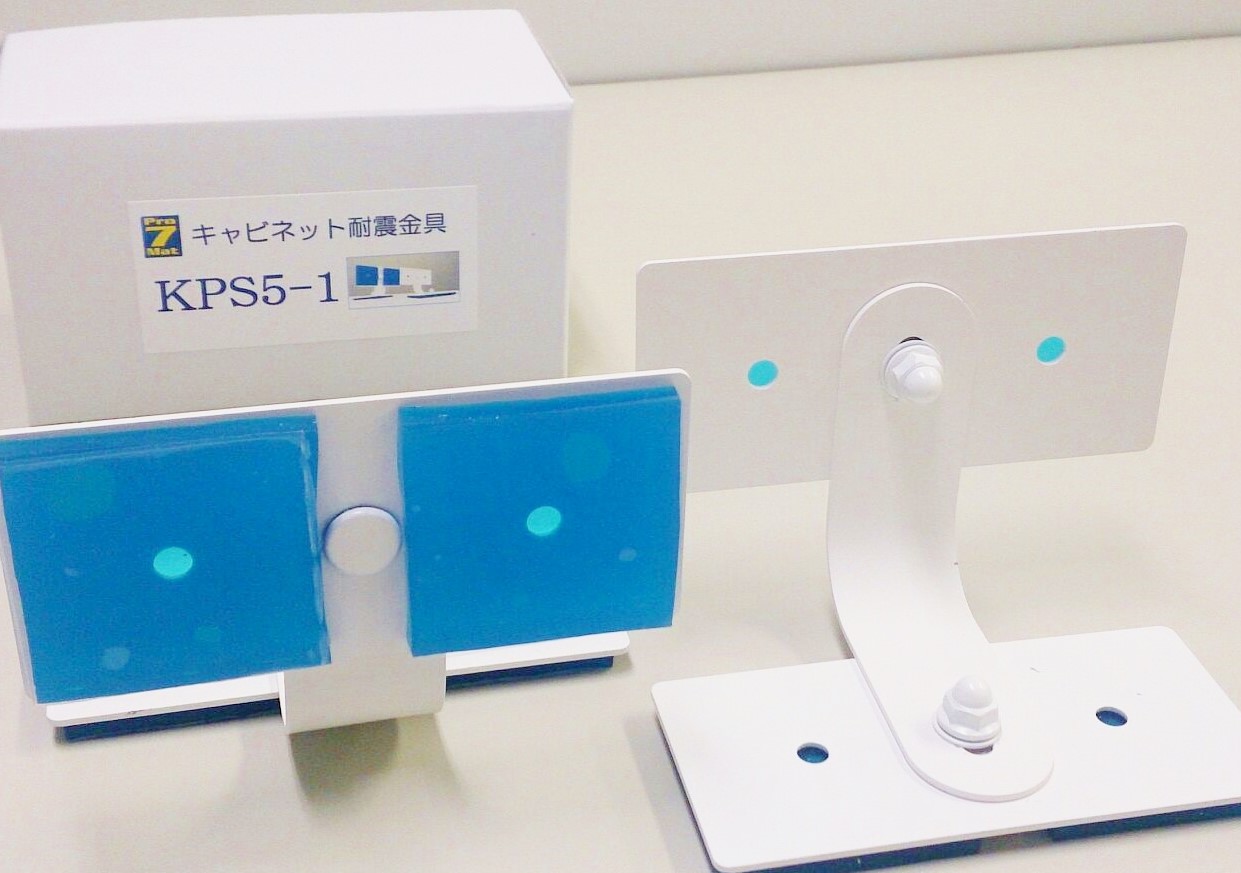

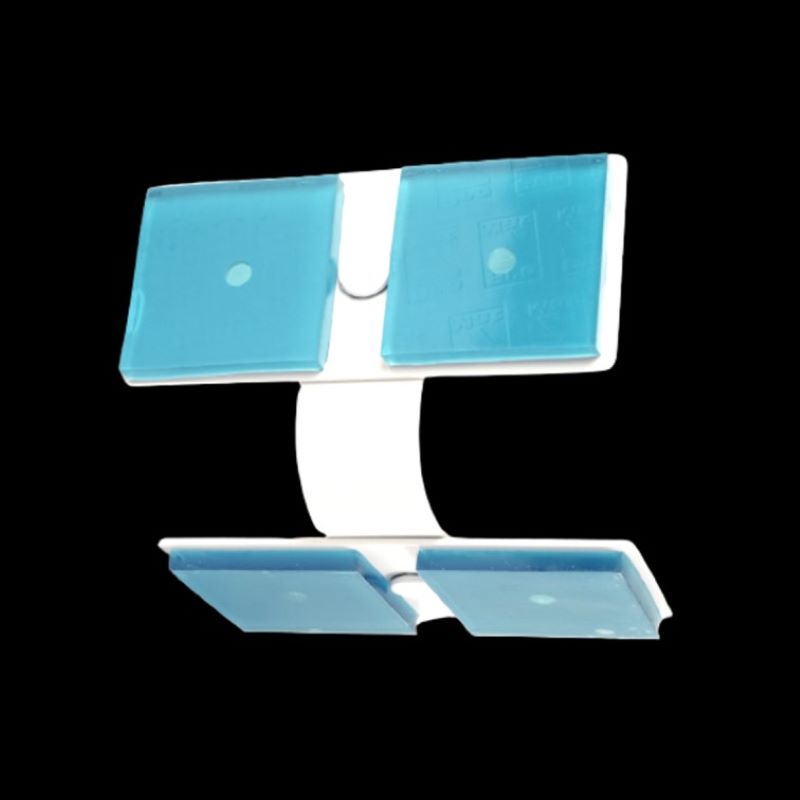

Metal Bracket
Size : H94 x W125 x D94 mm (Max)
Pad Size : 50 x 100 x t5 mm
Qty. : 2 set/package

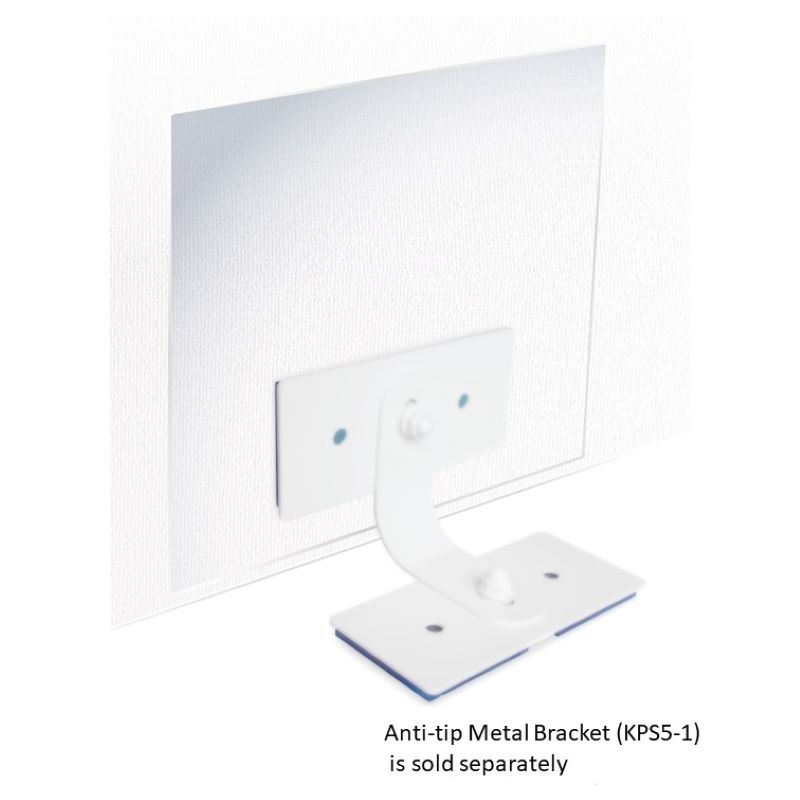

Wallpaper Reinforcing Film
Size : 200 x 200 x t0.26 mm
Qty. : 2 pcs
